Long use time Spare parts for Shotcrete Machine wearing accessories

Detailed Description of Dry Mix Shotcrete Machine:

Dry Mix Shotcrete Machine, also name Gunite machine, uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.

Technical specification of Dry Mix Shotcrete Machine:

Features of SPZ Series Dry Mix Shotcrete Machine:

1. SPZ Series Dry Shotcrete Machine can be driven by electric motor, diesel engine, and pneumatic motor.

2. Dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, control panel, electric motor (diesel engine, or pneumatic motor) etc.

3. Dry Shotcrete Machine have advanced technology, compact structure, convenient operation, stable performance and long service life.

global agent recruitment.pdf

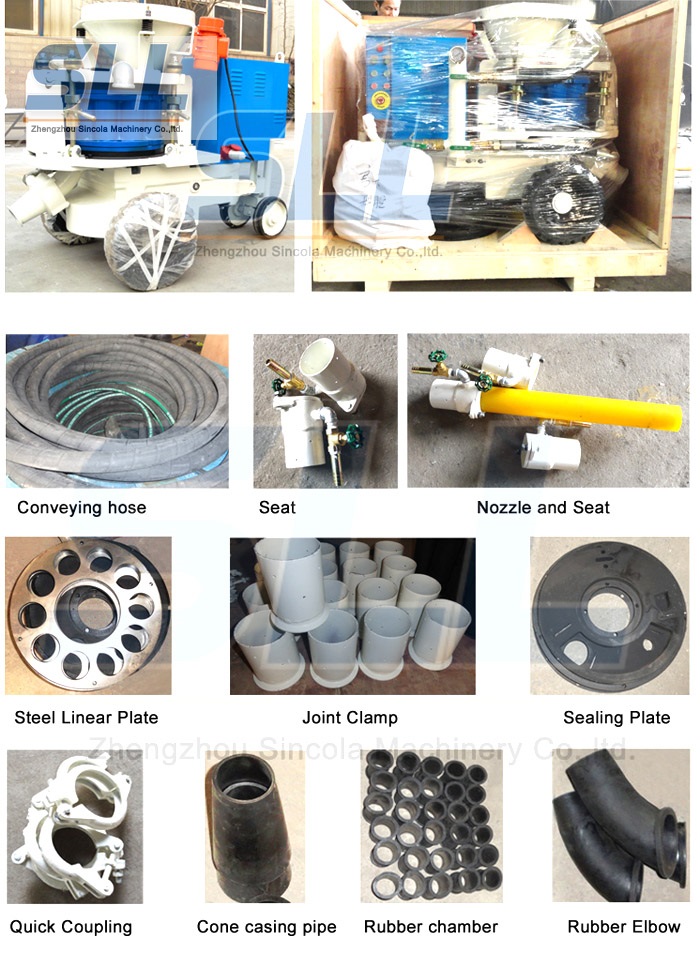

SPZ-9 shotcrete machine parts pictures:

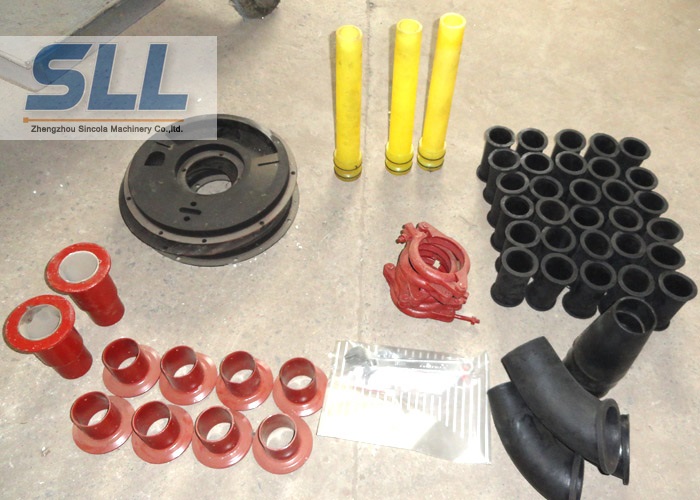

Shotcrete Machine Wearings Accessories:

• Rubber Sealing Plate (upper and lower)
• Rotor steel plate
• Rubber Chamber
• Cone Casing Pipe
• Rubber Elbow
• Spraying Nozzle
• Nozzle base
• Joint
• Clamp
• Convey hose
• Air hose

We are long terms supply All kinds of shotcrete machine accessories.
